Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
Inventory： ***
Sales： ***
Color：
Warehouse：
US-1
Freight： Click Freight trial Estimated shipping cost Shipping method
Enter store
Total price： $***
Package L*W*H：177.80 * 55.88 * 38.10（cm）
Gross weight：4.608（KG）
Product code：GNLH537801371620
Quantity：
Inventory： ***
Describe warehouse address

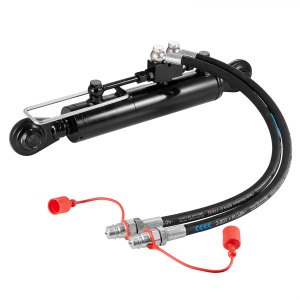

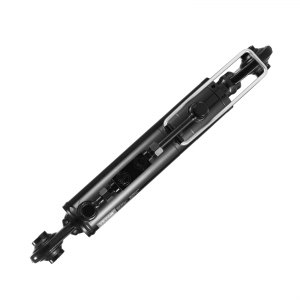

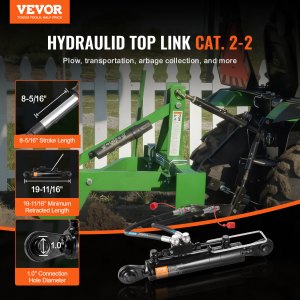

Hydraulic Top Link Cat. 2-2（8-5/16 in, 19-11/16~28 in), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve

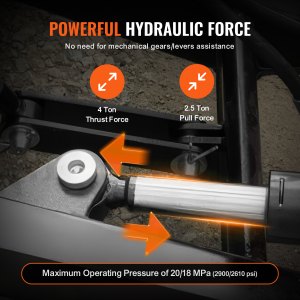

Enhanced Push-pull Force
Leak-proof Structure

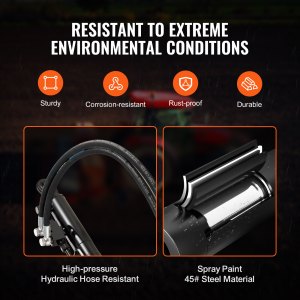

Durable Construction

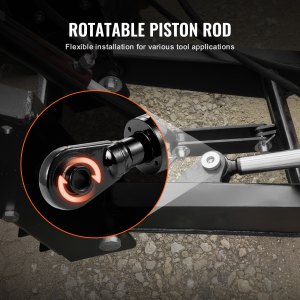

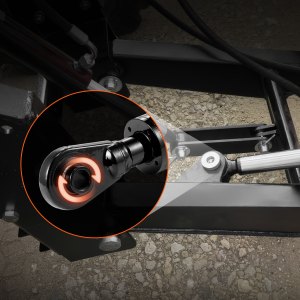

Flexible Installation
Perfect Compatibility
Easy Assembly

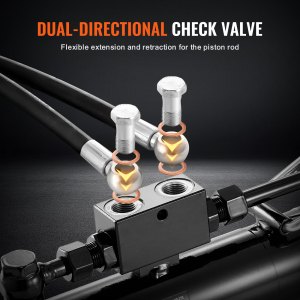

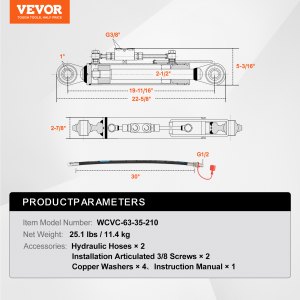

Hydraulic Hose: (I.D.&L.): 0.4×30.1 inch/∅10×765mm,Stroke: 8-5/16 inch/211 mm,Piston Rod Diameter: 1.4 inch/Φ35 mm,Minimum Retracted Length: 19-11/16 inch (500 mm),Cylinder Diameter (I.D.): 2.5 inch/Φ63 mm,Color and Surface Treatment: Black Paint,Connection Hole Width: 2.0 inch/51 mm,Product Dimensions: 22.6 ×5.2 ×2.9 inch/575×132×73 mm,Compatible Equipment: Class Ⅱ Tractors,Outer Diameter:2-7/8 inch（Φ73 mm）,Service Life: 1-year Warranty,Thrust Force: 4 Tons,Pull Force: 2.5 Tons,Check Valve Inlet/Outlet Port: G3/8",Item Model Number: WCVC-63-35-210,Fitting Type: G1/2,Maximum/Rated Working Pressure: 20/16 Mpa（2900/2320psi）,Net Weight: 25.1 lbs/11.4 kg,Main Material: 45#Steel,Connection Hole Diameter: 1.0 inch/Φ25.5 mm
